Specification

Patrol

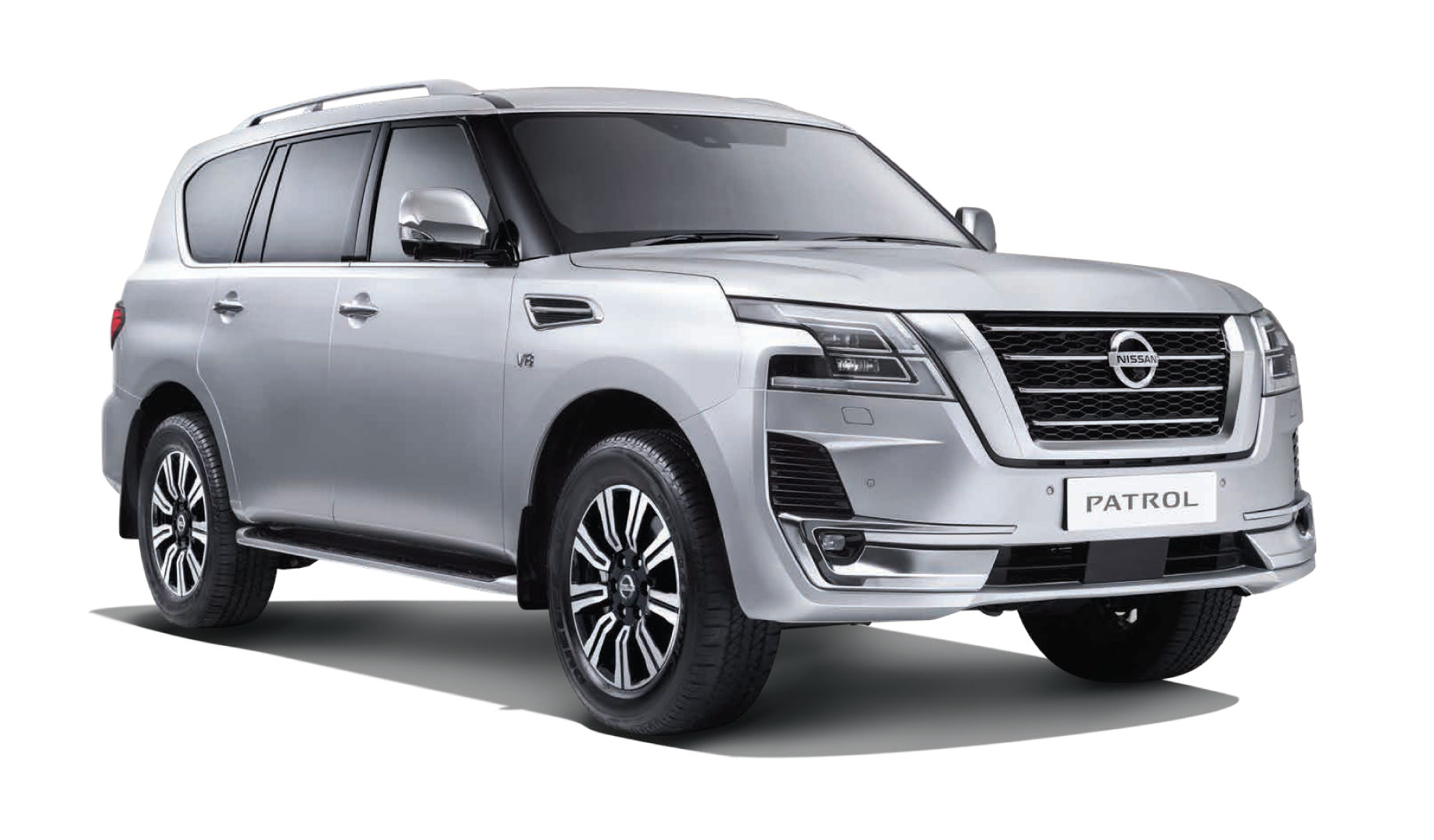

Nissan Patrol Ti-L

You are viewing

{xss:encodeForHTML(xssAPI,properties.txOverViewTabLabel)}

Overview

Gasoline 5.6L V8 engine Automatic 7 4X4

Equipment Includes

Automatic
Transmission
4X4
Drivetrain
Gasoline
Fuel Type

  • 298 @ 5800

    Kw

    Power

    Power
    Power The power generated by the engine in Kw

  • 560 @ 4000

    Nm

    Torque

    Torque
    Torque Torque output of the engine in joules

Specs

Your Version

Engine

  • Displacement (cc)

    5552

  • Number of Cylinders

    8

  • Max torque (Nm @ rpm)

    560 @ 4000

  • Driven wheels

    4X4

  • Max power (kW @ rpm)

    298 @ 5800

  • Number of Gears

    7

  • Gear Box Type

    Automatic

  • Bore x stroke (mm)

    98 x 92

  • Compression ratio

    11.2 : 1

Dimensions

  • Overall height (mm)

    1955

  • Overall length (mm)

    5175

  • Overall width (excluding mirrors) (mm)

    1995

  • Wheelbase (mm)

    3075

  • Track front/rear (mm)

    1695 / 1695

  • Min. turning circle (kerb to kerb) (m)

    12.5

  • Ground clearance (mm)

    273

  • Approach angle (degrees)

    28.0

  • Departure angle (degrees)

    26.3

Weight & Capacity

  • Fuel Tank Capacity (litres)

    140

  • Towing Capacity with Brakes (kg)

    3500

  • Towing Capacity without Brakes (kg)

    750

  • Kerb Mass (kg)

    2861

  • Gross Vehicle Mass (kg)

    3500

  • Carrying Capacity (kg)

    639

  • Gross front axle Capacity (kg)

    1650

  • Gross rear axle Capacity (kg)

    2030

  • Gross Combined Mass (kg)

    7000

Body

  • Door Count

    5

  • Body

    Wagon

Seating

  • Seating Capacity

    7

Chassis

  • Body Motion Control

    Hydraulic Body Motion Control suspension (front and rear) (HBMC)

  • Front / Rear Suspension

    Independent double wishbone coil sprung front and rear suspension

  • Brakes

    Front and Rear Ventilated Disc Brakes

  • Differential Lock

    Electronic Rear Differential Lock

  • Limited Slip Differential

    Rear Helical Limited Slip Differential (LSD)

  • Power Steering

    Vehicle Speed Sensitive

  • Tyres

    275/60R20

Performance

  • Fuel Supply

    Direct Injection Gasoline (DIG)

  • Drive Train

    Intelligent 4x4 with Electronic 4WD Selection

Equipment

Your Version

Wheels

  • 20" alloy wheels

Upholstery

  • Black - Leather accented seat trim

Trim

  • Black

Exterior

  • Sunroof (electric one-touch power tilt & slide)

  • Roof Rails

  • Power Operated Tailgate

  • LED Headlights

  • Headlight Washers

  • Front Fog Lights

  • Heated door mirrors with power adjustment/folding & integrated indicator lights

  • LED rear combination light

  • Side steps

  • Rear spoiler

  • Front and rear towing hooks

  • Chrome exterior door handles

  • One touch turn signal

  • Rear side and back privacy glass

  • Front windscreen with laminated glass

  • V8 Emblem

Interior

  • Push button engine start

  • Leather accented seat trim

  • 8-way driver seat with power slide/recline/height adjustment and power lumbar support

  • Driver's seat memory, with two settings, including side mirrors and steering column

  • Tilt and telescopic electronically adjustable steering column

  • 8-way front passenger seat with power slide/recline/height adjustment

  • Heated/cooled front seats

  • Second row air conditioning controls

  • Cruise control

  • Chrome interior door handles

  • Two second row seat 8" entertainment screens with headphones and remote control (USB/DVD/HDMI)

  • Audio system with CD/DVD, AM/FM radio, MP3 and USB /iPod connectivity with Bluetooth® audio streaming

  • Steering wheel audio controls

  • Bluetooth® handsfree phone system with steering wheel controls

  • 13 Premium Bose® speakers

  • USB charging ports (behind centre console) - 2

  • First row and second row auto up/down power windows

  • 60/40 split-fold second row seating with manual recline and fold function and centre armrest

  • 60/40 split-fold third row seating with manual recline and fold function

  • First and second row door pockets

  • Driver and passenger sunvisors with extension and illuminated vanity mirrors

  • Sunglasses holder

  • Front and rear opening centre console storage with armrest

  • First row centre console cool box

  • Glove compartment with lock and light

  • 12V power outlets (front, centre console, second row and rear luggage area) - 4

  • Cup holders - 4

  • Bottle holders - 8

  • Driver and passenger assist grips (first, second and third row)

  • Door operated interior lights

  • Rear luggage area light

  • Front map lights

  • Second row passenger reading lights

  • Driver and front passenger back pocket

  • Leather accented door trim

  • First and second row door armrest

  • Foot release park brake

  • Second row coat hanger hooks - 2

  • Cargo net hooks

Instrumentation

  • Intelligent 4WD shift switch (Auto, 4H & 4L) with mode select (On Road, Sand, Snow, Rock)

  • Drive Computer

  • Tachometer and twin trip odometer

  • Digital clock

  • Low fuel level warning indicator

  • Leave key warning

  • Lights on warning

Safety / Security

  • Front and rear parking sensors

  • Intelligent Around-View® Monitor (AVM) with Moving Object Detection

  • Anti-Lock Braking System (ABS) and Electronic Brakeforce Distribution (EBD)

  • Hill Descent Control (HDC) with on/off switch and Hill Start Assist (HSA)

  • Driver and passenger front and side-impact SRS airbags

  • Curtain SRS airbags all 3 rows

  • Driver and passenger 3 point ELR seatbelts with pretensioners, load limiters and height adjustment

  • Second and third row 3 point ELR seatbelts

  • 2nd row child restraint anchorage points (2 x ISOFIX outer seats, 2 x top tether)

  • 3rd row child restraint anchorage point (right hand seat)

  • Driver and passenger seatbelt warning and reminder

  • Rear adjustable headrests

  • Full size alloy spare wheel
